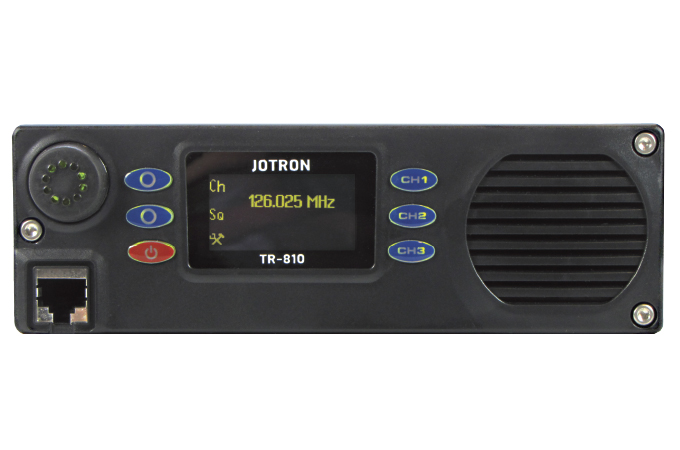

TR-810 VE Transceiver Vehicle Version

• ETSI and FCC approvals
• 10W output when used as vehicle installation or desktop mount
• Wide DC input voltage (10 to 28V)
• Fast recall of 3 preset channels
• A visually pleasing OLED display
• Detachable front panel
• Built-in loudspeaker (optional external loudspeaker)
• Multiple microphone input connections
• Voice recorder output
• External battery unit with battery indicator
• Several mounting options
• 25kHz/8.33kHz channel separation

APPROVED TO THE FOLLOWING STANDARDS:
Radio performance:
– EN 300 676 V1.3.1:
EMC:
– EN 301 489-1 V 1.5.1 : EMC for radio equipment
– EN 301 489-22 V 1.3.1 : Specific conditions VHF aeronautical equipment
– IEC 60945: Maritime navigation and radio communication equipment.
FCC:
– Part 87 and RSS 141
Safety:
– According to EN/IEC 60950
Vibration and shock:
– EN 300-019-2-2 : Transportation
– EN 300-019-2-5 : for ground vehicle installations,
– EN 300-019-2-7 : for portable and non-stationary use

Any vehicle with 12 or 24VDC supply can accommodate the TR-810. Any vehicle with 12 or 24VDC supply can accommodate the TR-810.

TR-810 VE Transceiver Vehicle Version 10W includes: 83200 TR-810 Transceiver Base Unit and a package of 86417 TR-810 VE Accessories, which contains a microphone, antenna, antenna adaptor FME-BMC, external ludspeaker, DC cable, 5 meter cable, console bracket, front module bracket and manual. These accessories can also be purchased separately.
