Offshore Transceiver • Survival Systems International

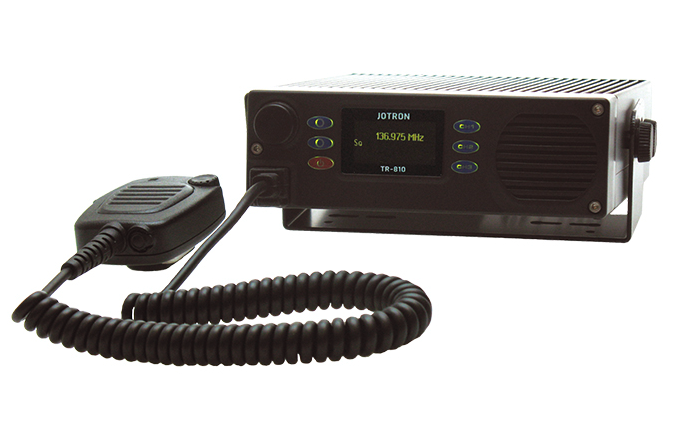

TR-810 OF Transceiver Offshore Version

Includes: 83200 TR-810 Transceiver Base Unit and a package of 86420 TR-810 OF Accessories, which contains microphone, AC/DC power, antenna adapter, 220V AC cable, 5 meter cable, console bracket, console cover plate, front module bracket, front cover plate with flange and manual. These accessories can also be purchased separately.

• ETSI and FCC approvals
• 10W output when used as vehicle installation or desktop mount
• Wide DC input voltage (10 to 28V)
• Fast recall of 3 preset channels
• A visually pleasing OLED display
• Detachable front panel
• Built-in loudspeaker (optional external loudspeaker)
• Multiple microphone input connections
• Voice recorder output
• External battery unit with battery indicator
• Several mounting options
• 25kHz/8.33kHz channel separation

APPROVED TO THE FOLLOWING STANDARDS:
Radio performance:
– EN 300 676 V1.3.1:

EMC:
– EN 301 489-1 V 1.5.1 : EMC for radio equipment
– EN 301 489-22 V 1.3.1 : Specific conditions VHF aeronautical equipment
– IEC 60945: Maritime navigation and radio communication equipment.

FCC:
– Part 87 and RSS 141

Safety:
– According to EN/IEC 60950
Vibration and shock:
– EN 300-019-2-2 : Transportation
– EN 300-019-2-5 : for ground Vehicle installations,
– EN 300-019-2-7 : for Portable and non-stationary use
