TR-810 MP Transceiver Man Portable Version

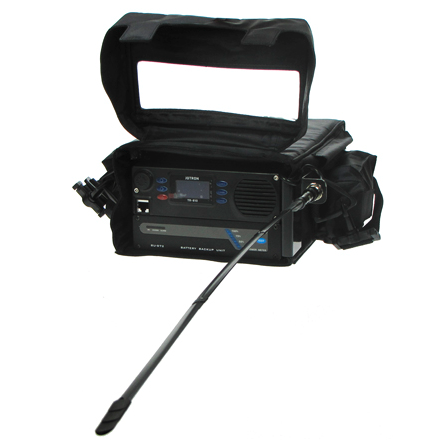

This is a portable version of the TR-810, where the radio with an antenna bracket is fitted into a carrying bag. The carrying bag has 2 pockets; one containing a charger and cable and the other a microphone. The battery capacity is the same as the TR-810LR.

TR-810 MP Transceiver Man Portable Version includes: 83200 TR-810 Transceiver Base Unit and a package of 86416 TR-810 MP Accessories, which contains microphone, battery backup, carrying bag, antenna, antenna cable, antenna bracket, fasten bracket, interconnection cable, DC power cable, power AC/DC with connector and manual. These accessories can also be purchased separately.

• ETSI and FCC approvals
• 10W output when used as vehicle installation or desktop mount.
• Wide DC input voltage (10 to 28V)
• Fast recall of 3 preset channels
• A visually pleasing OLED display
• Detachable front panel
• Built-in loudspeaker (optional external loudspeaker)
• Multiple microphone input connections
• Voice recorder output
• External battery unit with battery indicator
• Several mounting options
• 25kHz/8.33kHz channel separation

APPROVED TO THE FOLLOWING STANDARDS:
Radio performance:
– EN 300 676 V1.3.1:

EMC:
– EN 301 489-1 V 1.5.1 : EMC for radio equipment
– EN 301 489-22 V 1.3.1 : Specific conditions VHF aeronautical equipment
– IEC 60945: Maritime navigation and radio communication equipment.

FCC:
– Part 87 and RSS 141

Safety:
– According to EN/IEC 60950
Vibration and shock:
– EN 300-019-2-2 : Transportation
– EN 300-019-2-5 : for ground vehicle installations,
– EN 300-019-2-7 : for portable and non-stationary use
